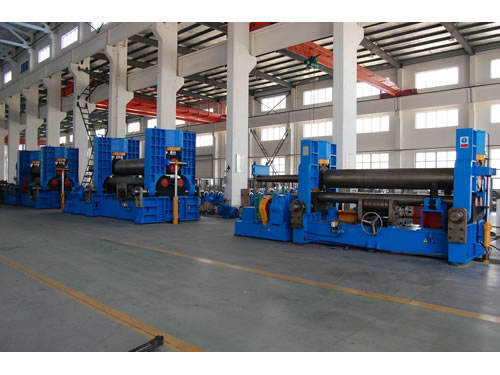

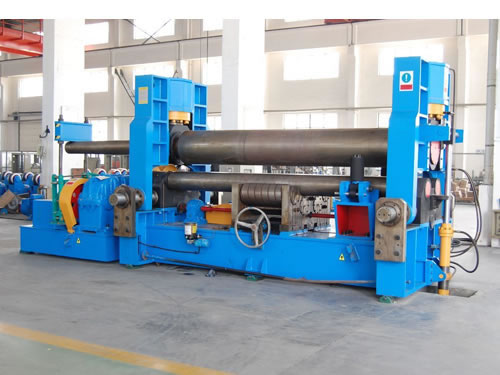

Top Roll Universal Adjusting Steel Plate Bending Machine

Introduction

Rontech Imp & Exp Co., Ltd is a leading exporter of top roll universal adjusting steel plate bending machines in China. In addition to this bending equipment, our company also provides cold roll forming machinery, high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, shot blasting machine, metal coil sheet, etc. We have a professional technical team of first-class rich experience and well-trained technicians. The hydraulic bending equipment developed and designed by us meets the international standard. Our steel plate bending machines have been used and widely praised by clients from more than 30 countries and areas, such as Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, and so forth.

Characteristics of This Steel Plate Bending Machine

• The top roller of this bending equipment can be vertically adjusted to change the curvature of steel plate.
• Horizontal move of the top roller can change the vertical plane position that is vertical to plane of two bottom rollers. This can meet the technical requirements of plate end bending and other metal bending.
• This steel plate bending machine can complete pre-bending of the steel plates’ two ends. The whole bending process does not need re-feeding.
• No extra equipment is needed during working.

Specifications of Top Roll Universal Adjusting Steel Plate Bending Equipment

Max. Pre-Bending Thickness (mm)	Max. Plate Width (mm)	Upper Roller Pressure (ton)	Min. Diameter of Max. Plate Thickness (mm)	Upper Roller Diameter (mm)	Bottom Roller Diameter (mm)	Two Bottom Rollers Center Space (mm)	Motor power (KW)			Weight (ton)	Dimension L × W × H (mm)
							Roller Rotate	Hydraulic System	Bottom Roller Move
4.5	2000	25	380	195	125	160	3	2.2	1.1	7	4400 × 1760 × 1850
6	2000	35	450	220	135	180	4	2.2	1.1	8.4	4400 × 1760 × 1920
6	2500	37	500	240	135	180	4	2.2	1.1	9.5	5100 × 1880 × 2000
9	2000	65	500	250	145	240	5.5	4	1.1	9	4600 × 1880 × 2000
9	2500	75	650	270	160	270	11	5.5	2.2	13	5100 × 1920 × 2100
9	3000	100	750	300	180	300	15	5.5	2.2	16	6100 × 1950 × 2170
12	2000	75	650	270	160	270	11	5.5	2.2	11	4600 × 1920 × 2100
12	2500	100	750	300	100	300	15	5.5	2.2	14.6	5600 × 1950 × 2170
12	3200	130	850	340	200	330	22	7.5	4	22	6550 × 2100 × 2400
16	2000	100	750	300	180	300	15	5.5	2.2	18	5100 × 1950 × 2170
16	2500	130	850	340	220	360	22	7.5	4	20	5700 × 2100 × 2400
16	3000	190	950	380	230	380	30	7.5	4	22.5	6400 × 2150 × 2400
20	2000	130	850	340	220	360	22	7.5	4	21.6	5350 × 2100 × 2400
20	2500	190	950	380	230	380	30	7.5	4	23	5700 × 2150 × 2460
20	3200	240	1100	430	260	420	37	11	4	24	6500 × 2150 × 2460
25	2000	190	950	380	230	380	30	7.5	4	21.4	5100 × 2100 × 2460
25	2500	270	1100	420	200	420	37	11	4	28	5785 × 2150 × 2460
25	3200	320	1400	480	260	460	45	15	5.5	25	6700 × 2350 × 2570
25	4000	450	1600	550	280	500	45	15	5.5	42.7	7750 × 2450 × 2900
32	2000	270	1200	480	260	420	37	11	5.5	35	5500 × 2250 × 2575
32	2500	320	1400	520	290	500	55	15	7.5	38	6200 × 2450 × 2900
32	3200	450	1600	550	290	500	55	15	7.5	41	6900 × 2450 × 2900
32	4000	550	2000	630	360	650	37×2	22	11	51	7900 × 2900 × 3550
40	2500	450	1800	580	320	580	30×2	22	11	44	6400 × 2650 × 3250
40	3200	610	2000	620	380	700	37×2	22	11	49	7400 × 2900 × 3550
40	4000	690	2200	720	400	800	42×2	30	15
40	5000	800	2400	810	440	880	42×2	37	15
50	2500	610	2000	620	380	700	37×2	30	15
50	3200	690	2100	680	400	780	42×2	30	15
50	4000	800	2400	800	460	920	45×2	37	15
50	5000	1050	2600	890	480	1000	45×2	37	22
60	3200	1050	2300	780	480	920	45×2	37	15
70	4000	1350	2600	900	540	1080	55×2	45	22
90	4000	1600	3000	960	600	1120	60×2	45	22

Remark: Material yield strength is designed for 245 Mpa. If products need to be improved, they must be subjected to official offer.
