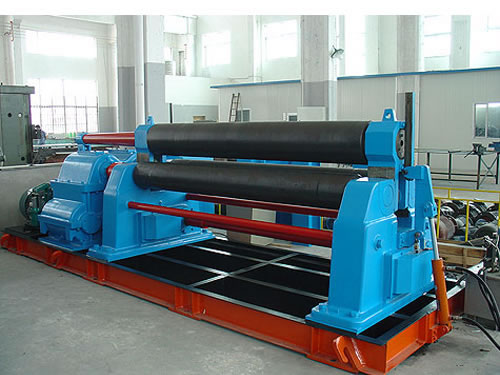

Top and Bottom Roll Adjusting Steel Plate Bending Machine

Description

Rontech Imp & Exp Co., Ltd is a professional manufacturer of top and bottom roll adjusting steel plate bending machines in China. In addition to this hydraulic sheet bending machine, we also provide cold roll forming machinery, high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, shot blasting machine, metal coil sheet, etc. We have a professional technical team, some of who have more than 15 years’ working experience and predominant R & D ability. W can provide reliable and durable hydraulic sheet bending machines to our customers. Our steel plate bending machines have been exported to Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, and so on. They are highly praised by our clients.

Features of This Hydraulic Sheet Bending Machine

• The top roller can be vertically adjusted and two bottom rollers can be moved horizontally separately or synchronously. When this steel plate bending machine is bending, each bottom roller performs as bottom roller or side roller.
• This hydraulic sheet bending machine can complete the whole process with one-time feeding.
• The one-time feeding can complete pre-bending and other bending processes.
• Rontech top and bottom roll adjusting steel plate bending machine is easy to bend cone shaped workpieces.

Specifications of Top and Bottom Roll Adjusting Hydraulic Sheet Bending Machine

Model	Max. Plate Thickness (mm)	Max. Pre-Bending Thickness (mm)	Max. Plate Width (mm)	Bending Speed (m/min)	Min. Diameter of Max. Plate Thickness (mm)	Upper Roller Diameter (mm)	Bottom Roller Diameter (mm)	Motor Power (kw)	Weight (ton)	Dimension L × W × H
SW11X-B-6×2000	6	4	2000	5.6	380	180	170	5.5	4.6	3600 × 980 × 1300
SW11X-B-6×2500	6	4	2500	5.6	450	230	200	7.5	5.3	5600 × 1980 × 1450
SW11X-B-8×2000	8	6	2000	5.6	450	230	200	7.5	5.7	5100 × 1980 × 1450
SW11X-B-8×2500	8	6	2500	5.5	500	240	220	11	7	5780 × 1490 × 1540
SW11X-B-8×3200	8	6	3200	5.8	650	260	230	15	8.6	6400 × 1490 × 1540
SW11X-B-12×2000	12	8	2000	5.5	500	240	220	11	6.7	5240 × 1490 × 1540
SW11X-B-12×2500	12	8	2500	5.8	650	260	230	15	7.7	5740 × 1485 × 1600
SW11X-B-12×3000	12	8	3000	5.8	750	300	260	22	12.1	6400 × 1770 × 1700
SW11X-B-16×2000	16	12	2000	5.8	650	260	230	15	7.6	5240 × 1485 × 1600
SW11X-B-16×2600	16	12	2500	5.8	750	300	260	22	9.4	5800 × 1770 × 1700
SW11X-B-16×3200	16	12	3200	5.6	900	340	310	22	16.8	6900 × 1900 × 1750
SW11X-B-20×2000	20	16	2000	5.8	750	300	260	22	8.8	5300 × 1770 × 1700
SW11X-B-20×2600	20	16	2500	5	850	340	310	30	16.2	6140 × 1900 × 1750
SW11X-B-25×2000	25	20	2000	5	850	340	310	30	13.9	5640 × 1900 × 1750
SW11X-B-25×2500	25	20	2500	4.5	950	380	320	37	17.6	7500 × 1740 × 1930
SW11X-B-30×2000	30	26	2000	4.5	950	380	320	37		6800 × 1740 × 1930
SW11X-B-30×2500	30	25	2500	4.5	1100	420	380	45		7650 × 1740 × 2130

Remark: Material yield strength is designed for 245 Mpa. If products need to be improved, they must be subjected to official offer.
